As a manufacturer of shear connector, we are able to produce shear connector ISO13918 ANSI/AWSD 1.1, JIS B 1198, IFI 148 (TD), GB/T 10433, DIN 32500(-4),DIN 34817 and other standards. We are produce shear connector thread size 3/8″-1″, M10 to M25, Length 30mm to 300mm. We also produce stud welding products according to customer’s special requirements. Length: Length is before weld. Stud diameters (D) 1/2 inch and below will be approximately 1/8 inch shorter after welding. 5/8 inch will be approximately 3/16 inch shorter after welding. Made to order lengths are available upon request.
Our company shear connector specifications are complete, the quality is stable, the delivery is fast, the service is thoughtful, welcome to order. shear connector are used for the connection and fixing of steel structural parts of various buildings and bridges. Our shear connector are composed of low-carbon steel. All purchases of shear connector come with the necessary ferrules required for welding, so you do not have to worry about making sure you have the necessary parts. shear connector also known as Weld Studs, are unthreaded with shear connectoran upset head. The typical use is for anchoring steel plates and shapes in concrete structures. Our shear connector meets AWS and all other applicable specifications. Weld Studs join a stud and another piece of metal together by heating both parts with an arc. They primarily used to anchor concrete to a steel beam. Arc stud welding is a process by which a metal fastener is welded to a parent metal through a fusion weld. Using a “ferrule” to capture and retain the weld’s heat, the molten metal created by the process cools the weld site and produces a weld that is stronger than the stud itself. Drawn arc stud welding can be used with dissimilar metals such as mild and stainless steel, as well as aluminum. shear connector are used in all types of concrete connections. They can be welded to a flat surface, Inside an angle, or on the heel of an angle using a stud welding system.

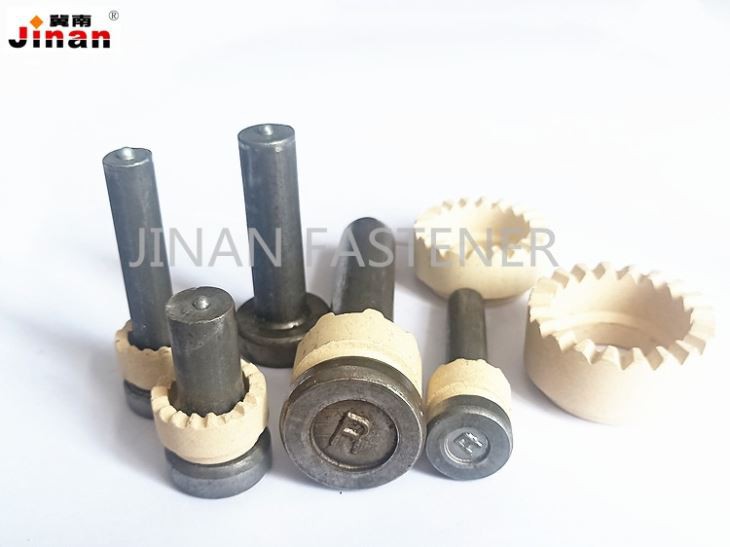

shear connector
shear connector
shear connector in production
shear connector in quality testing
shear connector in quality inspection
One corner of the shear connector warehouse
One corner of the shear connector warehouse
