What is the difference between H-Beams and H-Shaped Steel?
H-Beams vs. H-Shaped Steel: Understanding the Key Differences
In the world of structural engineering and construction, the terms "H-Beam" and "H-Shaped Steel" are often used. While they are related, they are not perfectly synonymous. Understanding the distinction is crucial for precise communication in design, procurement, and fabrication.
The simplest way to understand the relationship is:
All H-Beams are H-Shaped Steel, but not all H-Shaped Steel is an H-Beam.
This article will break down the definitions, differences, and applications of these two terms.
At a Glance: Core Differences
Feature | H-Beams | H-Shaped Steel |
|---|---|---|
Definition | A specific, standardized type of H-Shaped Steel. | A broad, generic term for any steel section with an "H" cross-section. |
Production Standard | Standardized. Governed by strict national/international standards (e.g., ASTM A992, JIS G3192, EN 10034). | Generic. Encompasses both standardized and non-standard, custom-made sections. |
Flange Characteristics | Parallel inner and outer surfaces. Flanges are typically thicker and wider relative to the web. | May include sections with tapered flanges (older I-Beams) or any custom flange geometry. |
Manufacturing Process | Primarily hot-rolled in a mill as a single, seamless piece. | Includes both hot-rolled sections (H-Beams) and welded sections from steel plates. |
Performance | Predictable and optimized. Mechanical properties are consistent and verified for use as primary structural members (beams/columns). | Varies. Performance of standardized sections is predictable; custom sections require individual engineering analysis. |
Primary Application | Main load-bearing members in buildings and bridges (columns, girders, primary beams). | Wide-ranging applications, from primary structures to custom supports, machinery frames, and shipbuilding. |
Detailed Explanation
1. H-Shaped Steel (The Generic Category)
H-Shaped Steel is an umbrella term for any long steel product whose cross-section resembles the letter "H". This "H" is formed by two horizontal elements (the flanges) connected by a single vertical element (the web).
This category includes two main types:

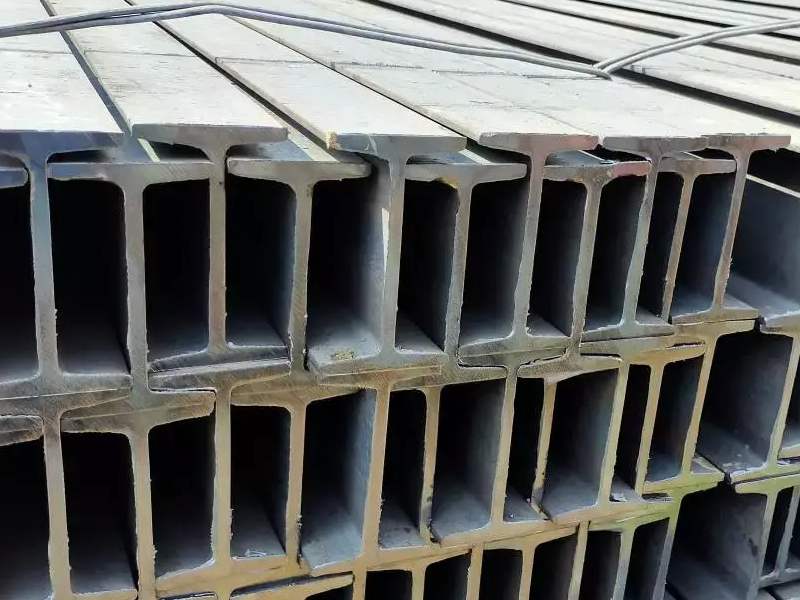

Rolled H-Shaped Steel: This is where standard H-Beams belong. They are produced by passing a heated steel billet through a series of rolls that gradually shape it into the final H-form. This process is efficient for high-volume production of standardized sizes.

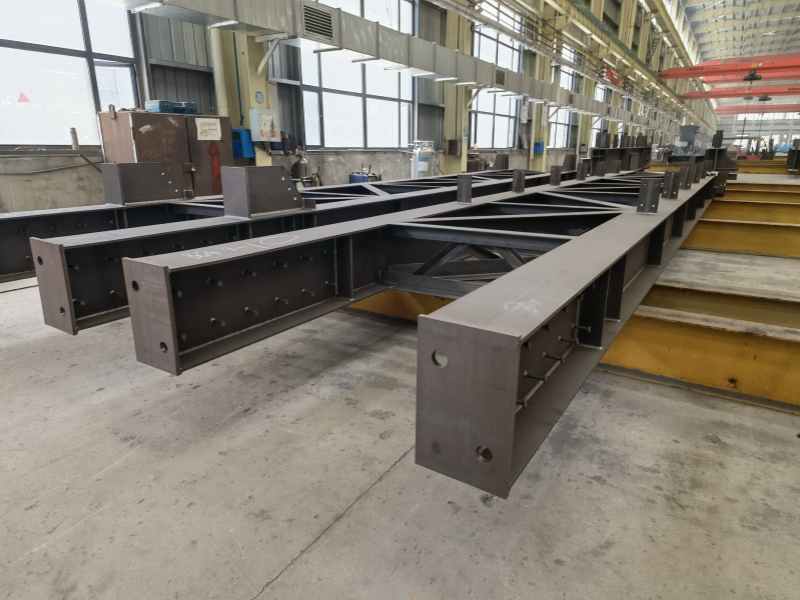

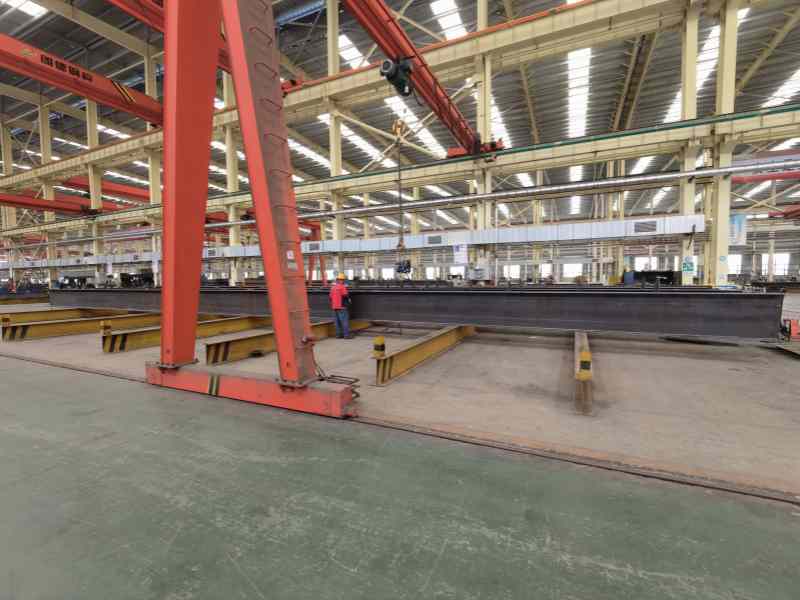

Welded H-Shaped Steel: These are custom-built sections fabricated by cutting and welding together three separate steel plates. This method is used when a specific size, thickness, or grade is needed that is not available in the standard rolled product lines.
Key Takeaway: "H-Shaped Steel" refers to the shape itself, regardless of how it was made or whether its dimensions are standard.
2. H-Beams (The Standardized Product)
An H-Beam (also commonly called a W-Beam or Wide Flange Beam in the US) is a specific subtype of H-Shaped Steel. Its key characteristic is that it is manufactured to meet exacting dimensional and mechanical standards.
Standardization: Organizations like ASTM International (US), the Japanese Industrial Standards (JIS), and the European Committee for Standardization (CEN) publish detailed tables of standard H-Beam sizes. For example, a common US size is a "W12x26", where "W" stands for Wide Flange, "12" is the nominal depth in inches, and "26" is the weight in pounds per foot. Engineers use these tables to select beams with known properties.
Parallel Flanges: True H-Beams/W-Beams have flanges with parallel inner and outer surfaces. This is a key visual differentiator from older I-Beams, which have flanges that are tapered (sloped on the inner surface).
Optimized Design: The geometry of an H-Beam is engineered to provide an excellent strength-to-weight ratio, offering strong resistance to bending forces in both major axes. This makes them exceptionally efficient as columns and beams.
Key Takeaway: "H-Beam" refers to a standardized, off-the-shelf product with known properties that can be reliably selected from a catalog.
The I-Beam Confusion
Historically, the term "I-Beam" referred to rolled sections with tapered flanges. However, in modern construction parlance, "I-Beam" is often used loosely as a generic term for any beam with an I or H shape, including modern H-Beams. In precise technical language, "H-Beam" or "W-Beam" is preferred for the parallel-flanged standard sections used today.
Conclusion: How to Choose

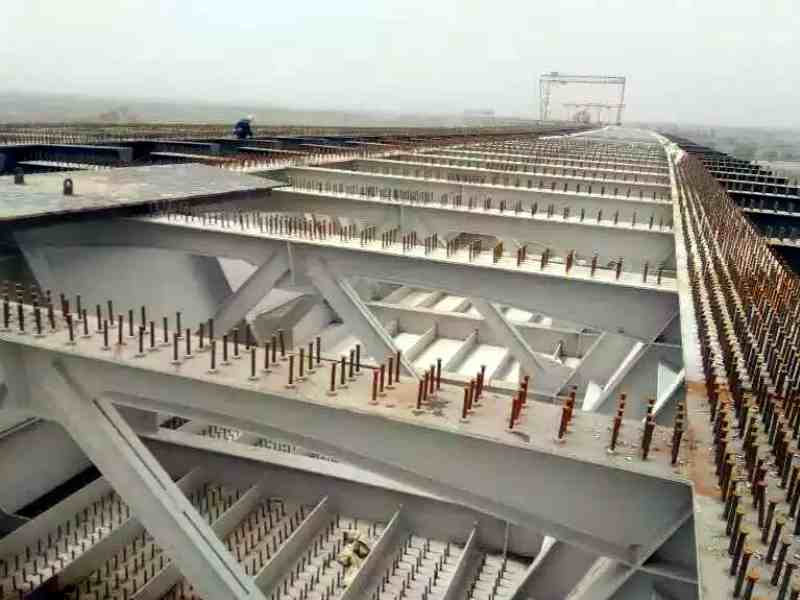

For most conventional construction projects (buildings, bridges, infrastructure), you will specify and use standard H-Beams. Their availability, predictable performance, and economic efficiency make them the default choice.

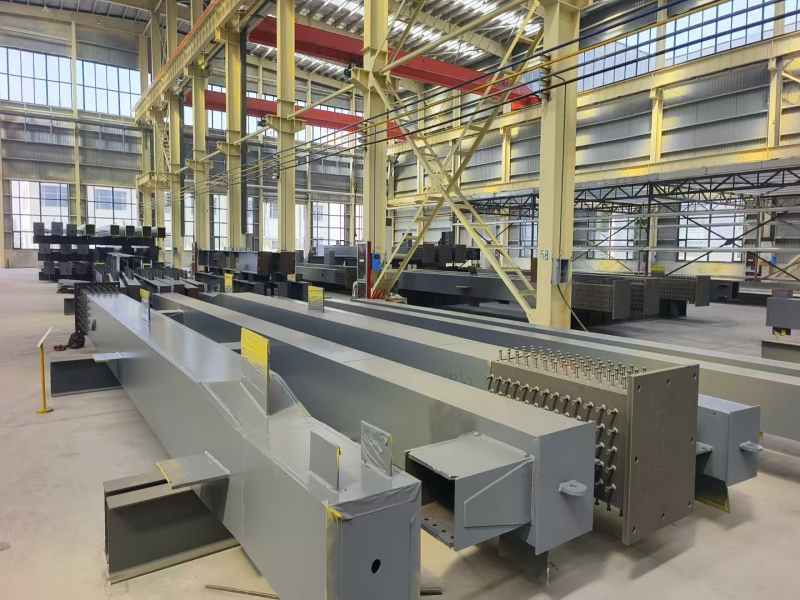

When your design requires unique specifications—such as non-standard dimensions, extra-heavy thickness, or a special steel grade—you will need to design and fabricate a custom welded H-Shaped Steel section. This is common in heavy industrial applications, complex architectural designs, and retrofitting projects.
In summary, H-Shaped Steel defines the form, while H-Beam defines a standard product within that form. Recognizing this distinction ensures clarity and precision in engineering and construction projects.
