Welding Nodes: The Fabricated Core of Structural Integrity
Introducing Welding Nodes: Precision-Engineered Junctions for Unmatched Strength and Continuity

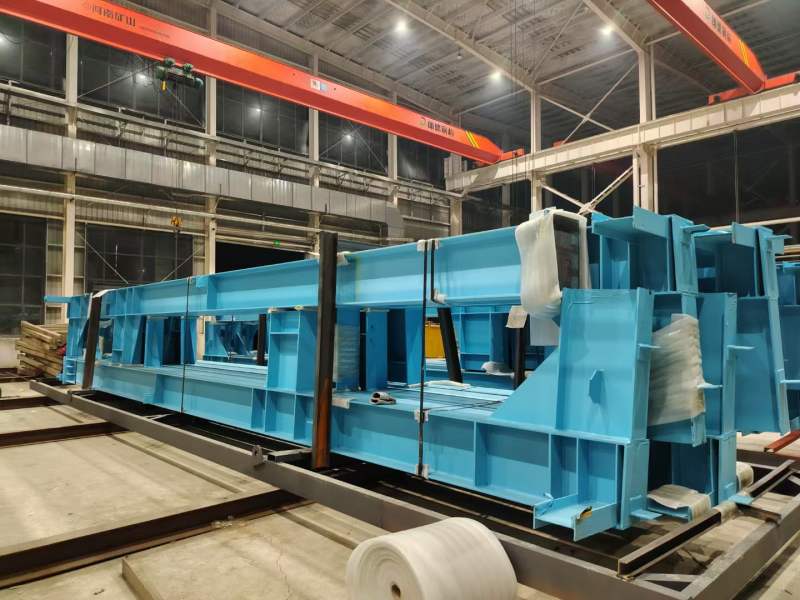

In the realm of structural engineering, the integrity of a framework hinges on the quality of its connections. Welding Nodes represent the pinnacle of joined strength, serving as custom-fabricated junctions where structural members fuse into a continuous, monolithic unit. These nodes are engineered to manage complex load distributions, ensuring seamless force transfer and forming the robust core of modern, high-performance structures. Welding node Node plates formed by butt welds and fillet welds.
What Are Welding Nodes?
Welding Nodes are specialized connection points fabricated by welding multiple structural members—such as beams, columns, braces, and pipes—into a single, cohesive unit. Unlike mechanical connections, welding nodes create permanent, rigid joints that distribute stresses evenly across the connected elements. These nodes are typically custom-designed for specific projects, tailored to the unique geometric and load-bearing requirements of the structure.
Key Features & Benefits:
Exceptional Strength and Rigidity: The continuous material flow achieved through welding creates joints with superior load-bearing capacity, resistance to fatigue, and enhanced structural continuity, outperforming bolted or fastened connections in high-stress applications.
Optimized Load Path Management: Precisely engineered to direct and distribute complex forces—including tension, compression, torsion, and bending moments—minimizing stress concentrations and maximizing framework stability.
Design Flexibility and Customization: Can be fabricated into virtually any shape or configuration, accommodating unique architectural designs, complex geometries, and specialized structural systems.
Material Efficiency: By eliminating the need for additional connecting plates, bolts, or hardware, welding nodes often result in a cleaner, more material-efficient design.
Aesthetic Cleanliness: Provides a seamless, streamlined appearance, ideal for architectural exposed structures where visual simplicity and elegance are desired.
Durability and Long-Term Performance: Forms a permanent, corrosion-resistant joint (when properly treated and coated), reducing maintenance needs and extending the structure’s lifespan.
Common Types and Applications:
Welding Nodes are critical in a wide range of demanding structural scenarios:
Space Frames and Gridshells: Connecting numerous members in complex three-dimensional frameworks for large-span roofs, atriums, and enclosures.
Bridge Construction: Used in the joints of truss bridges, arch bridges, and cable-stayed bridges, where precise load transfer is non-negotiable.
High-Rise Buildings and Towers: Moment-resistant frames in skyscrapers and communication towers require rigid, welded connections to resist lateral loads.
Heavy Industrial Structures: Supporting cranes, heavy machinery, and processing equipment with robust, vibration-resistant joints.
Architectural and Sculptural Structures: Enabling innovative, free-form designs in public art, pavilions, and iconic building features.
Pipeline and Offshore Structures: Managing high-pressure and dynamic loads in energy infrastructure.
Our Welding Node Expertise:
Our fabrication process integrates advanced design, engineering, and execution:
Engineering-Led Design: We use finite element analysis (FEA) and BIM modeling to simulate performance and optimize node geometry before fabrication.
Precision Fabrication: Utilizing CNC cutting, automated welding systems, and skilled craftsmanship to ensure millimeter-perfect accuracy and weld integrity.
Quality Assurance: Every weld undergoes rigorous non-destructive testing (e.g., ultrasonic, X-ray) to comply with international standards (AWS, ISO).
Custom Solutions: We collaborate directly with architects and engineers to develop nodes that meet exact structural and aesthetic specifications.
For structures where every connection matters, trust the fused strength of Welding Nodes.
Contact our engineering team today to discuss how our custom welding node solutions can provide the critical, high-performance connections your project demands.
